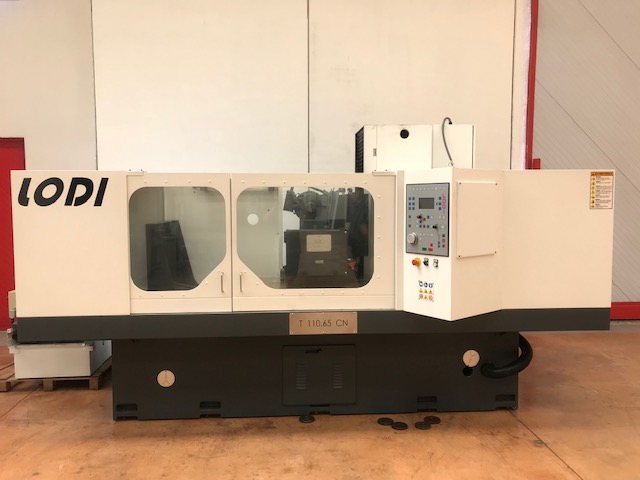

Model: T 110.65 CN
Max. longitudinal stroke of the table: 1250 mm
Min. longitudinal stroke of the table: 150 mm
Max. transversal stroke of the table: 650 mm
Rectifiable length: 1100 mm
Rectifiable width: 650 mm
Table dimensions: 1100x500 mm
Distance table-spindle axis: 800
mm
Grindstone dimensions: 400x127x75 mm

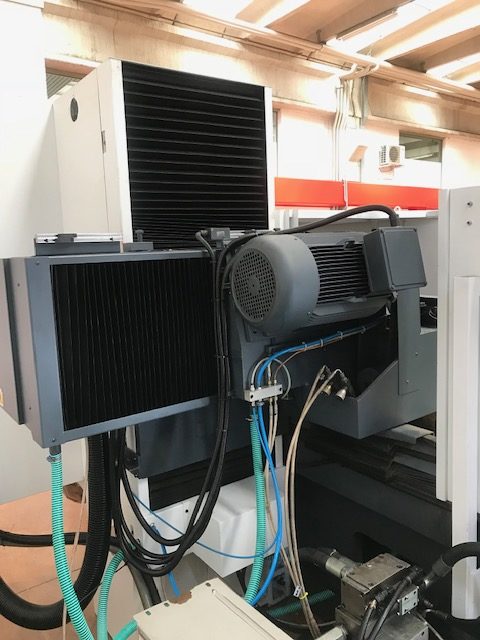

Spindle motor: 20 HP
Weight: 6800 kg
Encumbrance dimensions in operation: 4100x2350x2350 mm

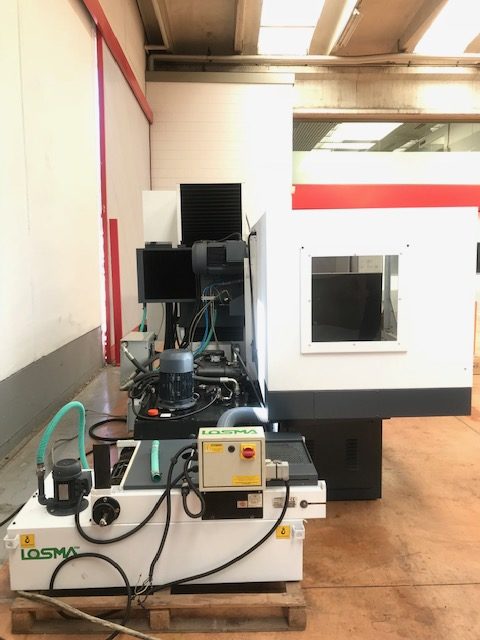

Tank control unit capacity: 240 It
Tank cooling capacity : 300 It
Electric pump for cooling: 0,35 HP
Longitudinal speed: 1-40 m/1’
Transversal Speed: 0-3 m/1’
Automatic Vertical Advancement: 0,001 mm
Automatic VertIcal Advancement: 0,0025 mm
