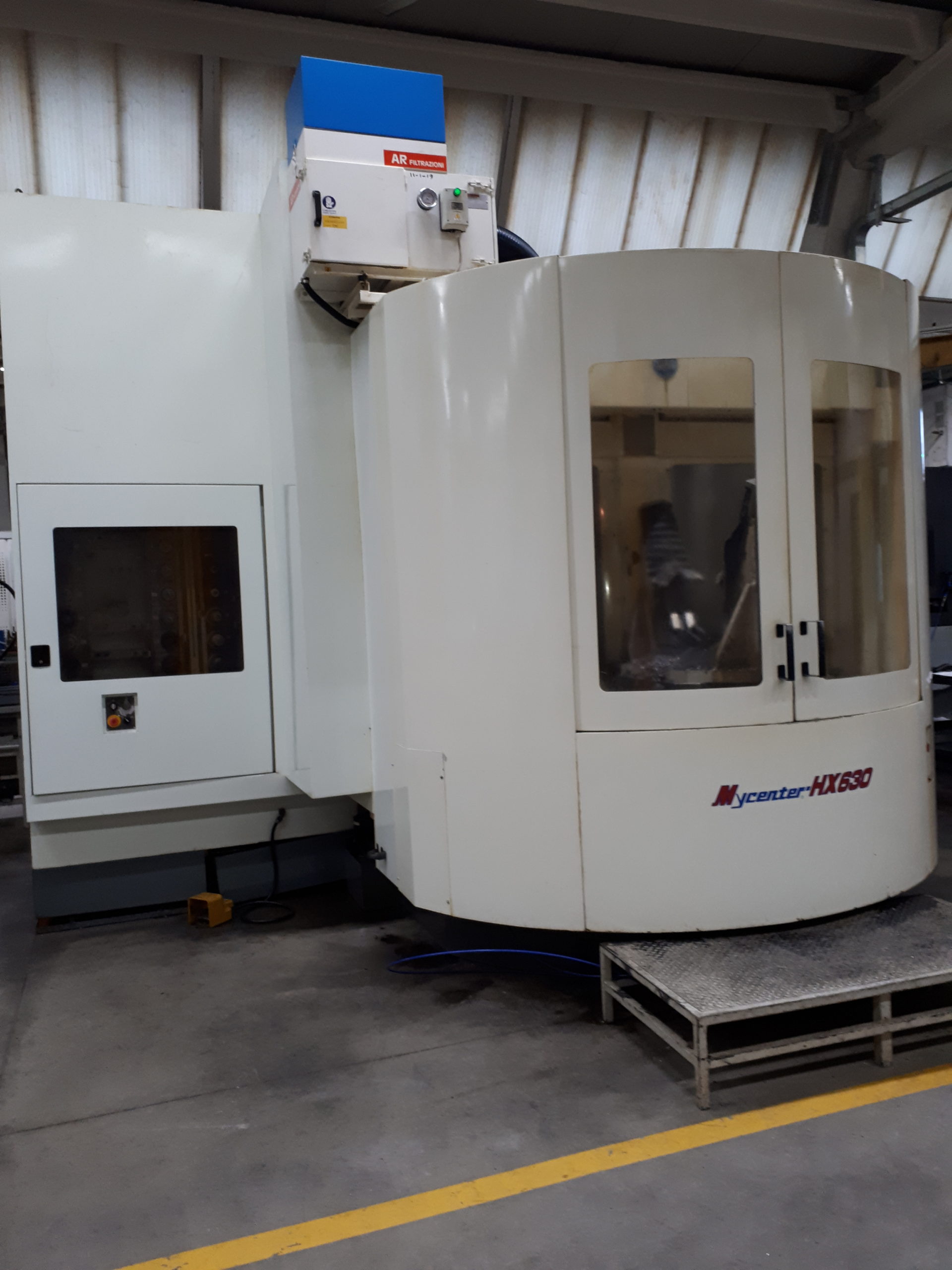

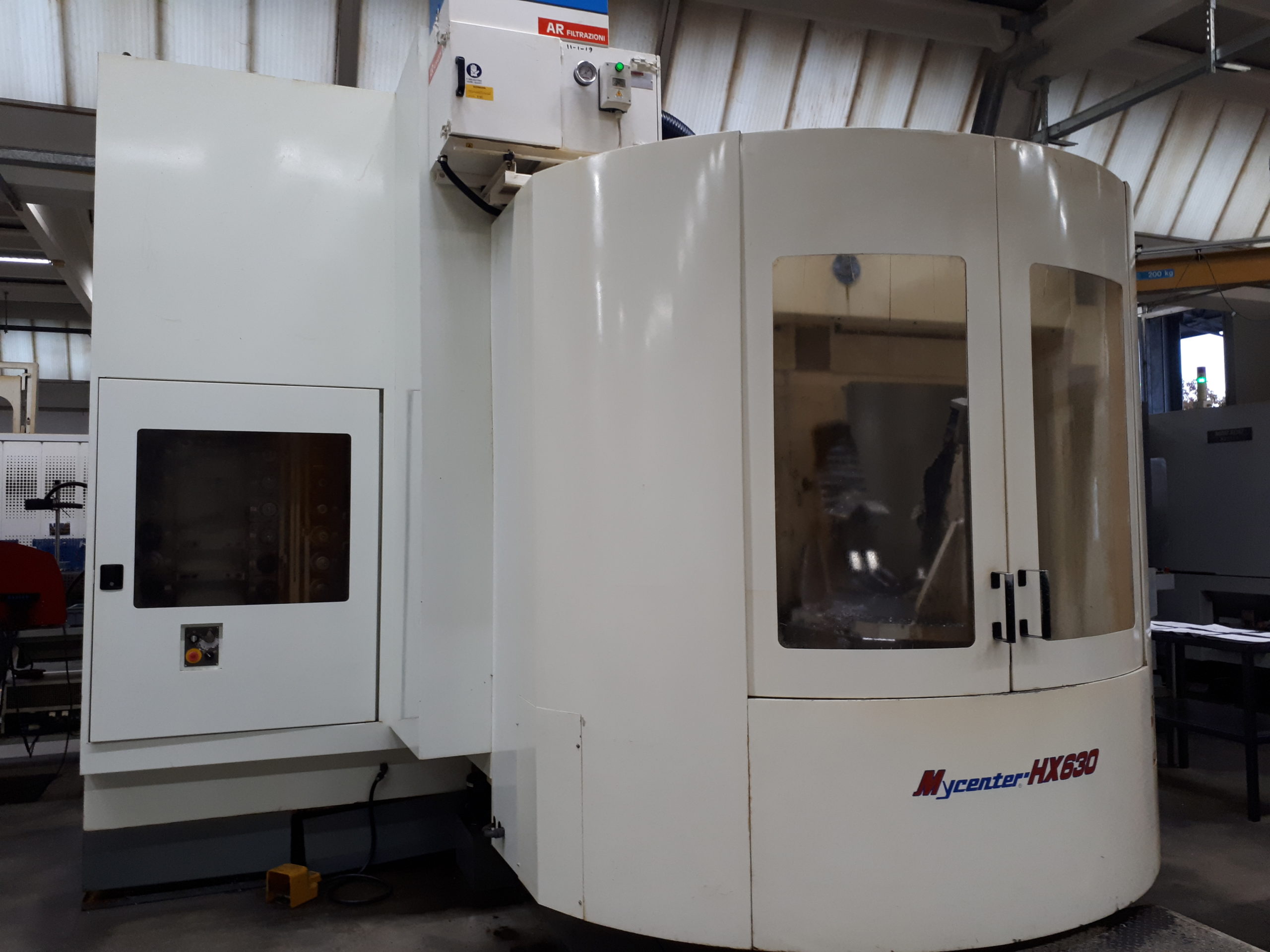

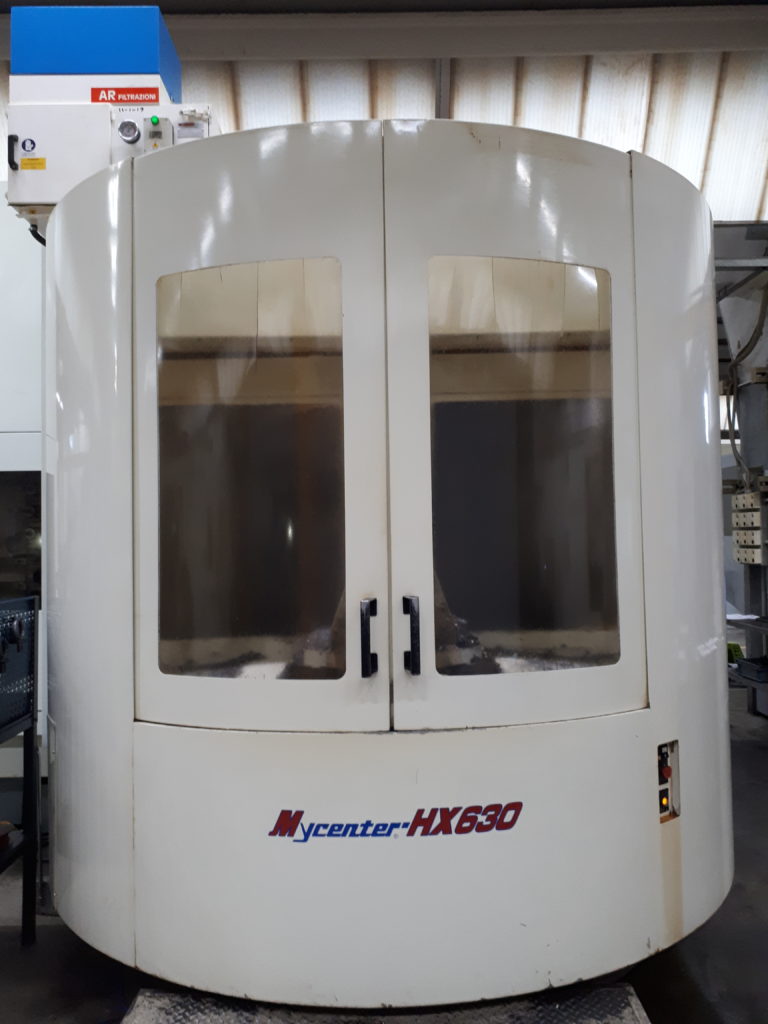

Type: horizontal machining center
Producer: Kitamura
Model: HX-630i
Year of production: 2001
Table dimensions: 630x630 mm
4th Axis in continue
Max. weight.: 1200 Kg
X-Axis: 1000 mm
Y-Axis: 800 mm
Z-Axis: 820 mm
CNC Control: Fanuc 16iM
Distance centre of the pallet- noise of spindle: 130-950 mm
Distance from the pallet to the center of the spindle : 50-850 mm
Spindle speed : 12000 rpm
Rapid x/ y/ z: 50/50/50 m
Magazine places: 100
Tape: MAS.BT 50 Plus
Max. tool weight: 20 Kg
Options: high speed, high pressure pump, tools setting blum measure and break,touch probe blum
